BQ NQ HQ PQ DIAMOND CORE BIT - IMPREGNATED TYPE FOR GEOLOGICAL DRILLING

1ピース
MOQ
To be negotiated
価格
BQ NQ HQ PQ DIAMOND CORE BIT - IMPREGNATED TYPE FOR GEOLOGICAL DRILLING
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
ビットアプリケーション: 柔らかから中硬い形状
ビットクラウンデザイン: 区分される
掘削方法: 中核の掘削
適したプロジェクト: 鉱山/ミネラル ワイヤーラインの調査
直径: Bq Nq Hq Pq など
ビット サイズ: A, B, N, H, P, T, W, Z, BQ, NQ, HQ, PQ,
使用法: 探査 掘削
繋がり: BQ NQ HQ PQ 糸付き
ビットクラウンマトリックス: 標準,重用
ダイヤモンドタイプ: 自然なダイヤモンド
ハイライト:

HRC35-40 Matrix Hardness Diamond Core Bit

,

100-500 Meters Drilling Depth Impregnated Diamond Core Bit

,

Streamlined Water Hole Design Geological Core Bit

基本情報
起源の場所: hebei
ブランド名: GLORYTEK
証明: CE,SGS,TUV
モデル番号: NQ
お支払配送条件
パッケージの詳細: 標準輸出パッケージ
受渡し時間: 10-15DAYS
支払条件: L/C、D/A、D/P、T/T、Western Union、MoneyGram
供給の能力: 1ヶ月あたりの8000部分
製品の説明

1.Description


Core Advantages: Versatile for Multiple Scenarios, Balancing Efficiency and Durability


Our BQ/NQ/HQ/PQ series diamond core bits are crafted using a composite process of high-purity diamond particles + wear-resistant metal matrix, with a matrix hardness of HRC35-40. They are precisely engineered for different formations:
BQ size is ideal for small-diameter coring in shallow geological surveys.
PQ size meets the needs of large-diameter sampling in deep wells and hard rocks (e.g., granite, basalt).
NQ/HQ sizes serve as the mainstay for medium-deep hole drilling, covering over 90% of mineral exploration and geotechnical engineering testing scenarios.


Equipped with a streamlined water hole design, the bits enhance drilling fluid circulation efficiency by 30%, effectively reducing rock powder blockage. The thickened drill wall structure boosts impact resistance—at a drilling depth of 100-500 meters, each bit’s service life is 1.5-2 times that of conventional products, significantly lowering drill replacement frequency and construction costs.



2.Product Parameters


Size Inner tube Outsidedia.*thickness Outer tube Outside dia.*thickness Core Dia. Bit Size
BQ 42*2.5 58*6 36.4 BQ
NQ 56*3 73*6.5 47.6 NQ
HQ 73*3 93*7 63.5 HQ
PQ 93*3 114*6 85 PQ



3.Detailed Photos

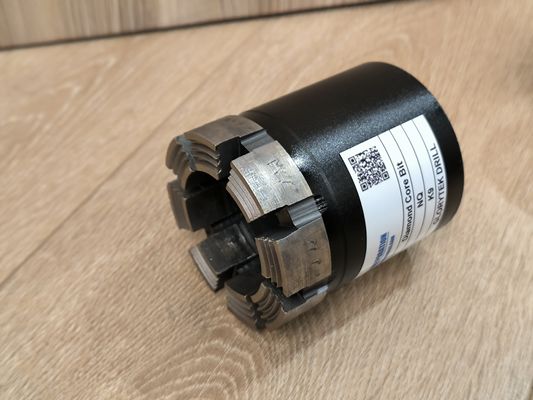

BQ NQ HQ PQ DIAMOND CORE BIT - IMPREGNATED TYPE FOR GEOLOGICAL DRILLING 0

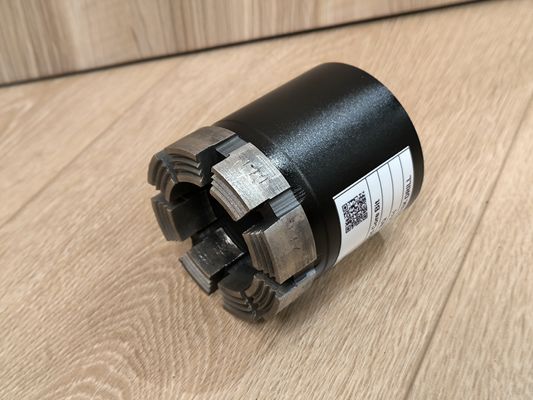

BQ NQ HQ PQ DIAMOND CORE BIT - IMPREGNATED TYPE FOR GEOLOGICAL DRILLING 1

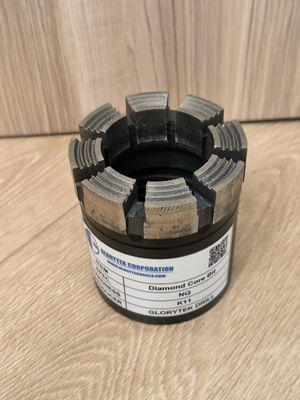

BQ NQ HQ PQ DIAMOND CORE BIT - IMPREGNATED TYPE FOR GEOLOGICAL DRILLING 2

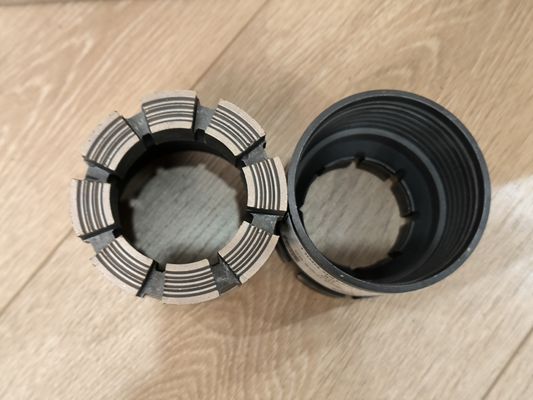

4.Related product
We can also support Core Drilling Machine:
SKID TYPE:
BQ NQ HQ PQ DIAMOND CORE BIT - IMPREGNATED TYPE FOR GEOLOGICAL DRILLING 3


5.Packaging & Shipping
Packing: Seaworthy Packing
Delivery: about 30 days after your down payment.

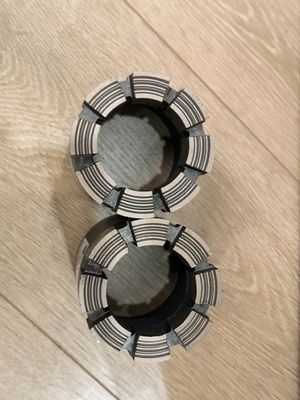

BQ NQ HQ PQ DIAMOND CORE BIT - IMPREGNATED TYPE FOR GEOLOGICAL DRILLING 4

Company Profile
BQ NQ HQ PQ DIAMOND CORE BIT - IMPREGNATED TYPE FOR GEOLOGICAL DRILLING 5

BQ NQ HQ PQ DIAMOND CORE BIT - IMPREGNATED TYPE FOR GEOLOGICAL DRILLING 6



Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, focuses on the manufacturing and export of drilling equipment and components. Our experienced team of designers and engineers is dedicated to meeting client specifications and project requirements. Our products are utilized in various sectors, including mining, water well drilling, anchoring projects, oil and gas, hydropower, and defense, providing dependable performance and reliability. We prioritize quality and customer satisfaction, ensuring that our solutions effectively address the needs of diverse industries.


Our Advantages

1. Professional Team & Experience:
Our expert team in this area has an experience of more than 20 years.

2. Strict Physical/Chemical Testing Procedures:
We have our own factory to make sure our products can meet the requirements of design and process, and provide reliable testing data.

3. Short Delivery Time:
Normally in stock standard products which can be shipped very soon.

4.Safe Package & Shipment:
Standard export packages with well protection or in wooden/steel cases.

5. Best After-Sale Service:
Timely communication & response especially for trouble shooting. We got good reputation around the world since all these years.
