Hot Sale Diamond Core Drill Bits BQ/NQ/HQ/PQ - Min Order 1 Piece
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
材料: ダイヤモンド マトリックス
に適しています: 地質調査 掘削など
ビットマトリックス: 金属または合成
コア・バレルの互換性: 標準
ビットの材料: ダイヤモンド
マトリックスタイプ: 柔らかく、中、硬い
掘削方法: 中核の掘削
ビットタイプ: 表面セット,浸透,PDC
適切なフォーメーション: 柔らか/中等/硬い岩
特徴: 競争価格の良質
基本情報
起源の場所: hebei
ブランド名: GLORYTEK
証明: CE,SGS,TUV
モデル番号: すべてのサイズ
お支払配送条件
パッケージの詳細: 標準輸出パッケージ
受渡し時間: 15日
支払条件: L/C、D/A、D/P、T/T、Western Union、MoneyGram
供給の能力: 月20000枚
製品の説明

1.Description

The impregnated diamond bits have the widest range of application. They are the most commonly useful bits from medium to super hard formations in the mineral exploration industry, the Hardness and abrasive of the rock formation are the key factors to determine the diamond specifications,concentration and matrix hardness. Toothed bits can get higher drilling efficiency when it is drilling at dense or abrasive stratum with lower drilling speed and pressure.It was especially effective at coal formation, using toothed bits can get better water flowing and drilling footage effect. Nowadays, Impregnated diamond bits have been widely used in wire-line drilling series.



2.Product Parameters


Size Inner tube Outsidedia.*thickness Outer tube Outside dia.*thickness Core Dia. Bit Size
BQ 42*2.5 58*6 36.4 BQ
NQ 56*3 73*6.5 47.6 NQ
HQ 73*3 93*7 63.5 HQ
PQ 93*3 114*6 85 PQ

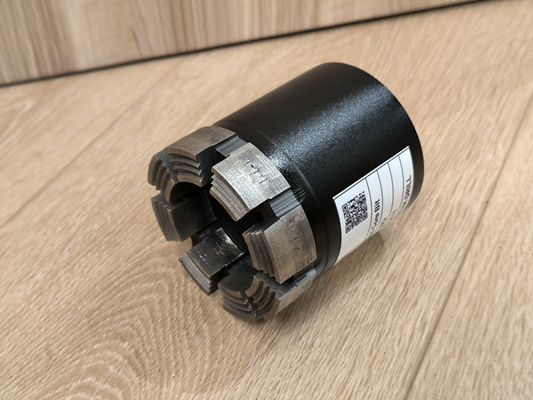

3.Detailed Photos
Hot Sale Diamond Core Drill Bits BQ/NQ/HQ/PQ - Min</p>
<p><img style=Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.

Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.

Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.
