Diesel engine-driving hydraulic system. Walk, Travel, rotate, feed, hoist, land, lift, compensate, unload and so on are all run by hydraulic components.
During rock drilling operation, you can use reverse hammer that air compressor will provide wind to drive and slag.
In operation, you can use reverse hammer and double ply drill rod (intake air through the gap of the double ply, and slag through the inner tube) to make reverse circulation operation.
Clients can also use common drill rod to make positive circulation operation.

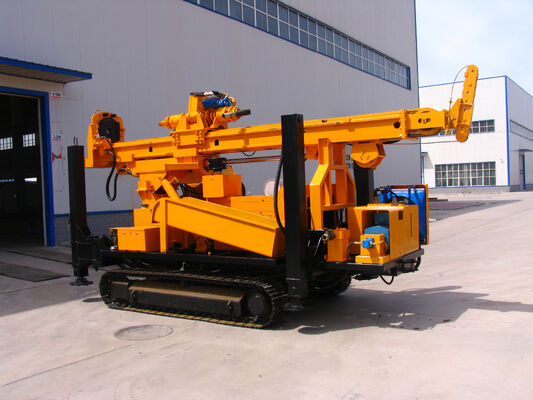

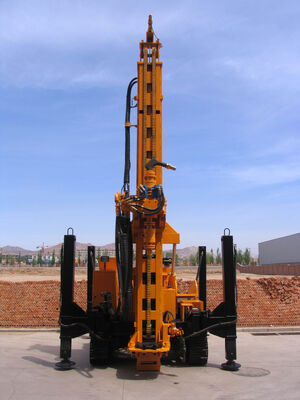

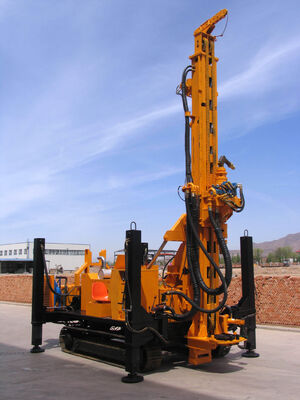

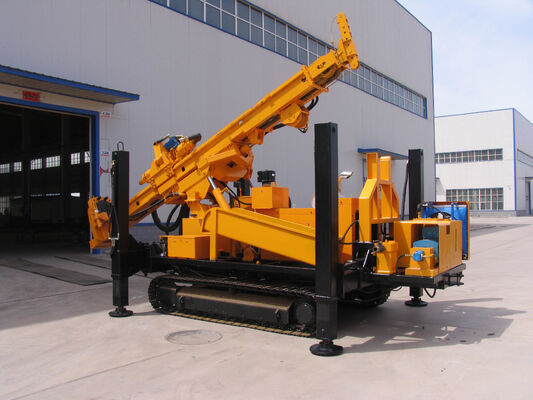

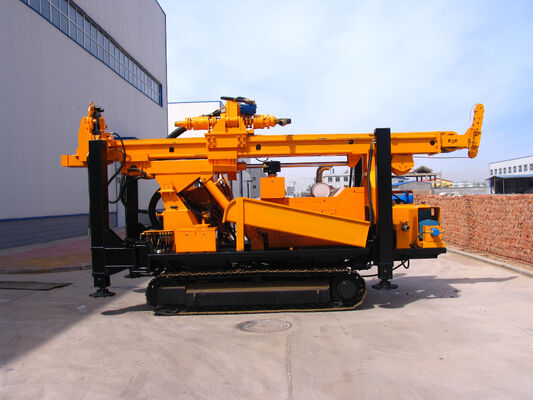

Working unit consists of feed system, slide guide (mast), top-driving rotary head, Intake box, slide plate, compensation mechanism, centering apparatus, unloading system and hoisting system, etc.
Axial compression, forward speed and rotation speed is adjustable.
| Model: | GLF500 |
| Max. drill depth: | 280m |
| Drill diameter: | 110～305mm |
| Working air pressure: | 1.05～3 MPa |
| Air consumption: | 16-42 m³/min |
| Drill rod length: | 3m |
| Drill rod diameter: | Φ89/Φ108/Φ127mm |
| Axial pressure: | 5t |
| Lifting force: | 12t |
| Slow lifting speed: | 2.9m/min |
| Slow feed speed: | 4.2m/min |
| Fast lifting speed: | 14.5m/min |
| Fast feed speed: | 21m/min |
| Rotation torque: | 4000-5700Nm; 2820-3300Nm |
| Rotation speed: | 0-120r/min；0-150r/min |
| Penetration rate: | 10-25m/h |
| Walking speed: | 2.5Km/h |
| Grade ability: | 21° |
| Weight: | 8.5t |
| Whole dimension: | 6.3*2.1*2.8 m |
| Application formation: | Unconsolidated layer or bedding rock |
| Drill method: | reverse hammer |
| Hammer: | Intermediate of high air pressure series |
