GL500S Crawler Mounted Water Well Drilling Rig with 500m Depth and 153KW Diesel Engine for Agricultural Irrigation

1
MOQ
negotiable
価格
GL500S Crawler Mounted Water Well Drilling Rig with 500m Depth and 153KW Diesel Engine for Agricultural Irrigation
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
名前: GL500S 井戸掘削リグ
キーワード: エンジニアリング井戸掘削リグ機械
深さ: 500M
穴あけ径: 105-325mm
空気圧: 1.2-3.5Mpa
ロッドの長さ: 3m,6m
ドリルロッド径: 89-102-114mm
吊り上げ力: 30T
エンジン: 153KW
寸法: 5700*1900*2400mm
ハイライト:

500m Depth Water Well Drilling Rig

,

153KW Diesel Engine Drill Rig Machine

,

Crawler Mounted Borehole Drilling Machine
基本情報
起源の場所: 中国
ブランド名: Glorytek
証明: CE
モデル番号: GL500S
お支払配送条件
パッケージの詳細: 標準輸出パッケージ
受渡し時間: 20日
支払条件: T/T、L/C、Western Union、MoneyGram、D/P、D/A
供給の能力: 40sets/month
製品の説明

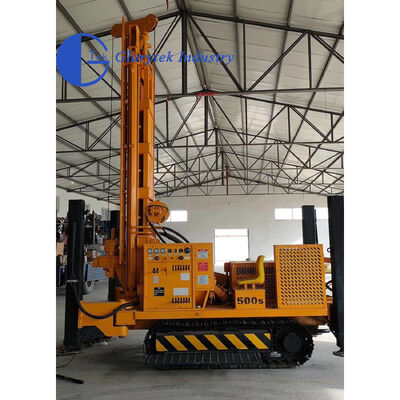

GL500S Water Well Drilling Rig for Agricultural Irrigation Engineering
The GL500S crawler water well drilling rig is engineered for demanding applications in geothermal drilling, industrial drilling, and agricultural irrigation projects. This versatile machine offers flexible operation compatibility with air compressors, mud pumps, and foam pumps.
Technical Specifications
Drilling Depth 500 m
Drilling Diameter 105-325 mm
Air Pressure 1.2-3.5 Mpa
Rod Length 3.0 / 6.0 m
Rod Diameter φ89 / φ102 / φ114 mm
Main Shaft Pressure 5 T
Lifting Force 30 T
Total Swing Stroke 6.8 M
Max. Rotary Torque 15000 N.m
Max. Rotary Speed 100 r/min
Secondary Winch Lifting Force 5 T
Jacks Stroke 1.5 M
Moving Speed 2.5 km/h
Climbing Ability 21°
Weight of the Rig 10.28 T
Diesel Engine 153 KW
The Oil Pump Plunger Pump
Overall Dimensions 5700 × 1900 × 2400 MM
Working Condition Loose Layer and Bedrock
Product Gallery
GL500S Crawler Mounted Water Well Drilling Rig with 500m Depth and 153KW Diesel Engine for Agricultural Irrigation 0
Customer Visiting
GL500S Crawler Mounted Water Well Drilling Rig with 500m Depth and 153KW Diesel Engine for Agricultural Irrigation 1
Manufacturer Profile
GL500S Crawler Mounted Water Well Drilling Rig with 500m Depth and 153KW Diesel Engine for Agricultural Irrigation 2
Glorytek Industry (Beijing) Co., Ltd
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
