Direct Factory Price 5 3/8" IADC 537 TCI Tricone Drill Bit for Mining and Water Well

1個
MOQ
To be negotiated
価格
Direct Factory Price 5 3/8" IADC 537 TCI Tricone Drill Bit for Mining and Water Well
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
コード: IADC 517/537/637等。
該当する業界: 石油・ガス、井戸、鉱業および地殻変動産業、油田、建設、地熱、方向性ボーリング、地下基礎工事
パッケージ: 耐航性のある梱包
糸: 3 1/2 レグ
直径: 5 3/8
処理の種類: triconeビットを造ること
タイプ: トリコーン
応用: 堅い形成への柔らかさ
キーワード: TCIの健康な訓練のためのTricone削岩用ビット
TRC: 3つのローラーの円錐形
切断構造: 炭化タングステンの挿入物
基本情報
起源の場所: 中国
ブランド名: GLORYTEK
モデル番号: 5 3/8 IADC537
お支払配送条件
パッケージの詳細: 標準輸出パッケージ
受渡し時間: 5～7営業日
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム
供給の能力: 1か月あたり2000個
製品の説明

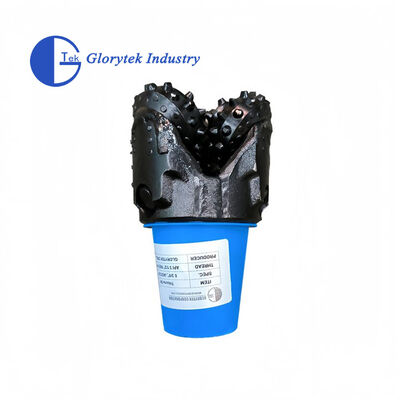

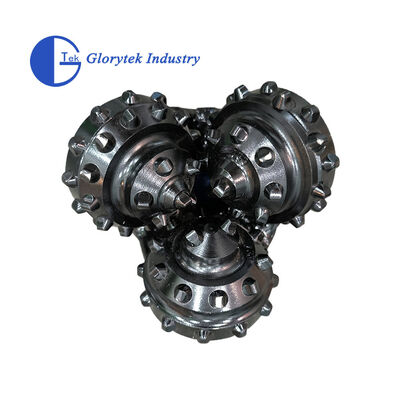

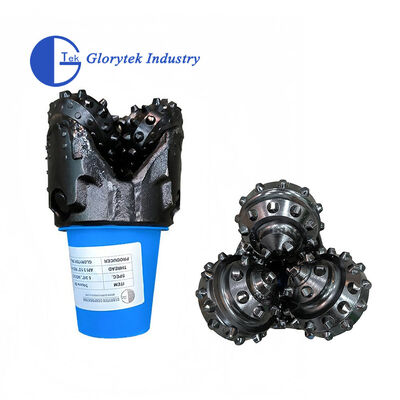

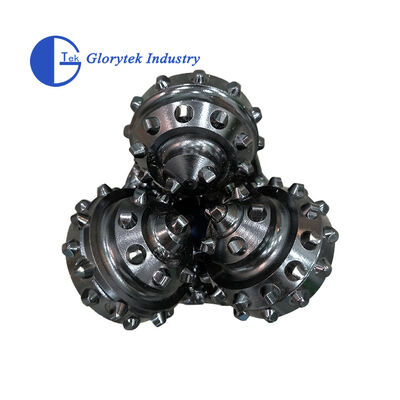

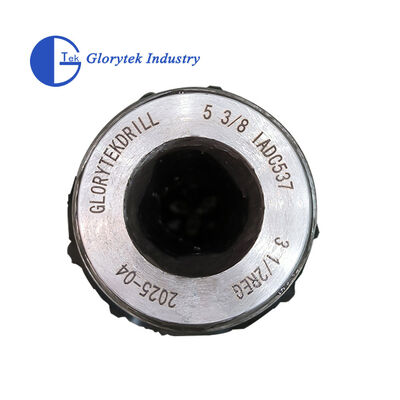

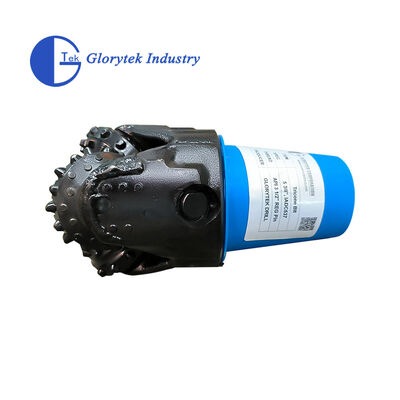

IADC537 5 3/8" Tricone Rock Roller Bit
Professional API steel tooth TCI tricone clay bit water well drill bit with elastomer sealed bearing system.
Direct Factory Price 5 3/8" IADC 537 TCI Tricone Drill Bit for Mining and Water Well 0
Product Overview
The roller bit is a widely used drilling tool that features alternating cutting teeth contact with the well bottom, resulting in small rock breaking torque and high specific pressure for efficient penetration into various formations.
Structural Features
  • Oil-storage sealed sliding or rolling bearing system with jet-type three-cone design
  • Optimized tooth arrangement with different tooth shapes and heights for various rock formations
  • Enhanced diameter protection performance with anti-friction alloy bearing system
  • Silver-plated, precision processed components for anti-bite and high load-bearing capacity
  • High-toughness carbide teeth with optimized design parameters
  • Widely used in oil, gas field exploitation, and geological drilling applications
Recommended Drilling Parameters
IADC WOB (KN/mm) RPM (r/min) Applicable Formations
417/437/447/415/435
0.35~0.9		 150~70 Very soft formations with low compressive strength and high drillability
517/527/515
0.35~1.0		 140~60 Soft formations with low compressive strength and high drillability
537/547/535
0.45~1.0		 120~50 Soft to medium formations with low compressive strength
617/615
0.45~1.1		 90~50 Medium hard formation with high compress strength
637/635
0.5~1.2		 80~40 Hard formations with high compressive strength
Note: The upper limits of WOB and RPM in the table should not be used simultaneously.
Performance Advantages
  • Alternating cutting teeth contact reduces rock breaking torque
  • Small contact area with well bottom creates high specific pressure
  • Easy penetration into various geological formations
  • Extended working edge length reduces wear
  • Adaptable to formations ranging from soft to hard
Packing and Delivery
Direct Factory Price 5 3/8" IADC 537 TCI Tricone Drill Bit for Mining and Water Well 1
Manufacturer Profile
Direct Factory Price 5 3/8" IADC 537 TCI Tricone Drill Bit for Mining and Water Well 2
Glorytek Industry (Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years of experience. Supported by an experienced R&D team and engineers, we successfully complete projects according to client requirements.
Our manufacturing facility covers 250,000 square meters with 150,000 square meters of construction area. We operate over 200 sets of machining machinery, CNC processing centers, friction welding machines, and testing equipment, employing more than 600 professionals. Our products are exported to over 60 countries worldwide.
