High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit

1個
MOQ
negotiated
価格
High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
タイプ: tciのtriconeビット、網をふるう鉱山
応用: オイル、ガス、井戸、ダイヤモンドの油井の訓練
色: 黒いまたは顧客の要求として
形成: 、堅い頁岩、柔らかい石灰岩、等のような中型の形成、泥岩に柔らかい。
アドバンテージ: 良質および最もよいサービス、高力の、耐久および高性能
ハイライト:

6 1/2 inch tungsten carbide drill bit

,

IADC 837 tricone roller bit

,

tricone rock bit with carbide inserts

基本情報
起源の場所: 中国
ブランド名: GLORYTEK
証明: CE,SGS,TUV
モデル番号: 6 3-4」IADC517
お支払配送条件
パッケージの詳細: 標準輸出パッケージ
受渡し時間: 5~7営業日
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム
供給の能力: 1か月あたり2000個
製品の説明
High strength Tricone Rock Bit 6 1-2'' For Soft To Hard Formation
1. Description:

Tricone drill bits has been in continuous use in the water well,oil & gas industry, and is still being improved!

We have a wide selection of tricone bits - there’s a bit for every application.our product line can be configured to use tungsten car bide insert (TCI) bits and steel tooth bits for the toughest drilling applications.

Tricone bits cut faster and last longer in all ground conditions and especially varying ground conditions.Higher penetration rates and Higher quality.

The 6 1-2 '' blast hole bits are designed for drilling soft to medium hard formations, with rock compressive.Formation drilled may consist of shale, limestone, quartzite, slate, sandstone and granite.

2. Applications:

Wry soft formation with low compressive strength and high drillability, such as:

shale, clay, sandstone, gravel, etc.

3. Specifications:
Bit size API thread recommended torque
in mm in KN.M
6 152.4 3 1/2 9. 5-12.2
6 1/8 155.6 3 1/2 9. 5-12.2
6 1/4 158.8 3 1/2 9. 5-12.2
6 1/2 165.1 3 1/2 9. 5-12.2
6 5/8 168.3 3 1/2 9. 5-12.2
6 3/4 171.5 3 1/2 9. 5-12.2
7 1/2 190.5 4 1/2 16. 3〜21. 7
7 5/8 193.7 4 1/2 16. 3〜21. 7
7 7/8 200 4 1/2 16. 3〜21. 7
8 3/8 212.7 4 1/2 16. 3〜21. 7
8 1/2 215.9 4 1/2 16. 3〜21. 7
8 5/8 219.1 4 1/2 16. 3〜21. 7
8 3/4 222.3 4 1/2 16. 3〜21. 7
9 1/2 241.3 6 5/8 38〜43. 4
9 5/8 244.5 6 5/8 38〜43. 4
9 7/8 250.8 6 5/8 38〜43. 4
10 1/2 266.7 6 5/8 38〜43. 4
10 5/8 269.9 6 5/8 38〜43. 4
11 279.4 6 5/8 38〜43. 4
115/8 295.3 6 5/8 38〜43. 4
12 304.8 6 5/8 38〜43. 4
12 1/4 311.2 6 5/8 38〜43. 4
12 5/16 312.7 6 5/8 38〜43. 4
12 3/8 314.3 6 5/8 38〜43. 4
12 7/16 315.9 6 5/8 38〜43. 4
12 5/8 320.7 6 5/8 38〜43. 4
13 1/8 333.4 6 5/8 38〜43. 4
13 1/2 342.9 6 5/8 38〜43. 4
13 5/8 346.1 6 5/8 38〜43. 4
13 3/4 349.3 6 5/8 38〜43. 4
4. Packaging & Shipping:

Packaging for tricone drill bit for water well drilling is in carton box.
Samples will be shipped by express, batch products will be shipped by sea;
3-5 days for samples, batch products are depend on the order quantity.

5. Our advantage:
  • We have CE,SGS certificate, we guarantee product quality, delivery time and payment in safe; button tooth used tricone bits
  • 20+ years manufacturing experience of drill bits;
  • Powerful technology support and mature manufacturing experience;
  • Strict quality control before delivering;
  • 24 hours online service;
  • We can provide customized products with special requirements.

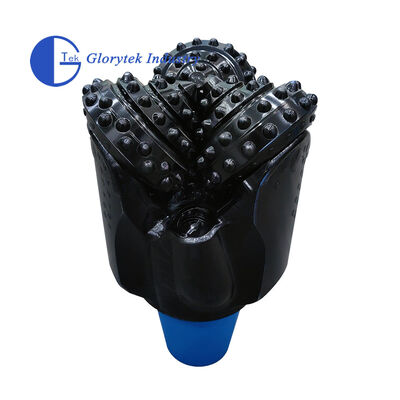

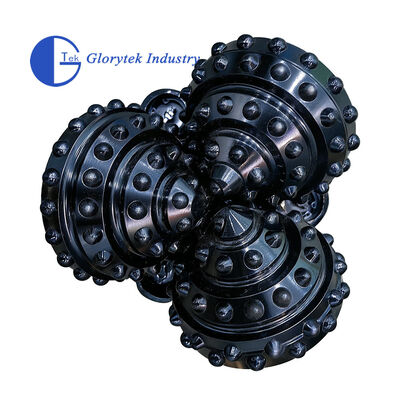

The Photo of products

High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit 0High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit 1

Company Profile

High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.

Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
