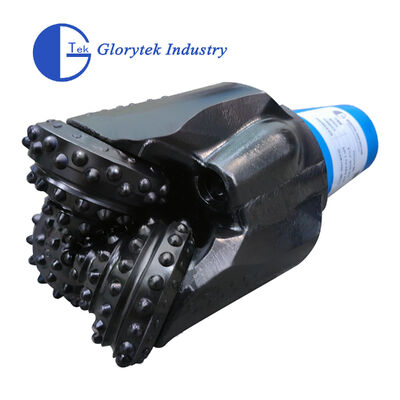

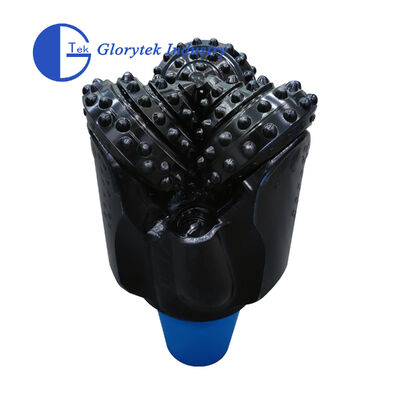

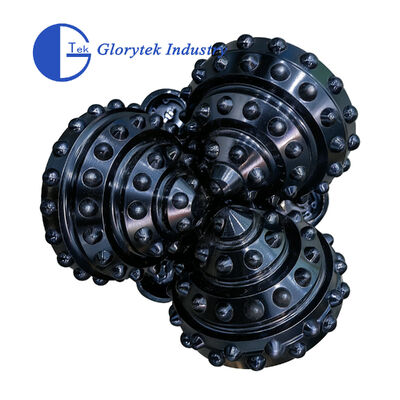

High Strength Tricone Rock Bit 6 1/2" For Soft To Hard Formation
Tricone drill bits have been in continuous use in the water well, oil & gas industry, and continue to be improved through ongoing innovation. We offer a comprehensive selection of tricone bits designed for every application, including tungsten carbide insert (TCI) bits and steel tooth bits for the most demanding drilling conditions.
Tricone bits deliver faster cutting speeds and extended service life across all ground conditions, particularly in varying formations. They provide higher penetration rates and superior drilling quality.
The 6 1/2" blast hole bits are engineered for drilling soft to medium hard formations with rock compressive strength. Suitable formations include shale, limestone, quartzite, slate, sandstone, and granite.
| Bit Size | API Thread | Recommended Torque (KN.M) |
|---|---|---|
| 6" (152.4 mm) | 3 1/2" | 9.5-12.2 |
| 6 1/8" (155.6 mm) | 3 1/2" | 9.5-12.2 |
| 6 1/4" (158.8 mm) | 3 1/2" | 9.5-12.2 |
| 6 1/2" (165.1 mm) | 3 1/2" | 9.5-12.2 |
| 6 5/8" (168.3 mm) | 3 1/2" | 9.5-12.2 |
| 6 3/4" (171.5 mm) | 3 1/2" | 9.5-12.2 |
| 7 1/2" (190.5 mm) | 4 1/2" | 16.3-21.7 |
| 7 5/8" (193.7 mm) | 4 1/2" | 16.3-21.7 |
| 7 7/8" (200 mm) | 4 1/2" | 16.3-21.7 |
| 8 3/8" (212.7 mm) | 4 1/2" | 16.3-21.7 |
| 8 1/2" (215.9 mm) | 4 1/2" | 16.3-21.7 |
| 8 5/8" (219.1 mm) | 4 1/2" | 16.3-21.7 |
| 8 3/4" (222.3 mm) | 4 1/2" | 16.3-21.7 |
| 9 1/2" (241.3 mm) | 6 5/8" | 38-43.4 |
| 9 5/8" (244.5 mm) | 6 5/8" | 38-43.4 |
| 9 7/8" (250.8 mm) | 6 5/8" | 38-43.4 |
| 10 1/2" (266.7 mm) | 6 5/8" | 38-43.4 |
| 10 5/8" (269.9 mm) | 6 5/8" | 38-43.4 |
| 11" (279.4 mm) | 6 5/8" | 38-43.4 |
| 11 5/8" (295.3 mm) | 6 5/8" | 38-43.4 |
| 12" (304.8 mm) | 6 5/8" | 38-43.4 |
| 12 1/4" (311.2 mm) | 6 5/8" | 38-43.4 |
| 12 5/16" (312.7 mm) | 6 5/8" | 38-43.4 |
| 12 3/8" (314.3 mm) | 6 5/8" | 38-43.4 |
| 12 7/16" (315.9 mm) | 6 5/8" | 38-43.4 |
| 12 5/8" (320.7 mm) | 6 5/8" | 38-43.4 |
| 13 1/8" (333.4 mm) | 6 5/8" | 38-43.4 |
| 13 1/2" (342.9 mm) | 6 5/8" | 38-43.4 |
| 13 5/8" (346.1 mm) | 6 5/8" | 38-43.4 |
| 13 3/4" (349.3 mm) | 6 5/8" | 38-43.4 |
Tricone drill bits for water well drilling are packaged in carton boxes. Samples are shipped by express delivery, while batch products are shipped by sea. Sample delivery typically takes 3-5 days, with batch delivery times dependent on order quantity.
Glorytek Industry (Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years of experience. We are supported by a highly experienced R&D team and engineers that enable us to successfully complete all assigned projects according to client requirements.
Our factory covers an area of 250,000 square meters, with construction area of approximately 150,000 square meters. We operate over 200 sets of machining machinery, CNC processing centers, friction welding machines, and testing equipment, with more than 600 employees. Our products have been exported to more than 60 countries worldwide.
