DTH Hammer Bit
Product Description
Our Down-The-Hole (DTH) hammer bits are engineered for high-performance drilling in the toughest rock formations, including granite, basalt, and hard limestone. Designed with premium tungsten carbide buttons and a reinforced steel body, these bits deliver exceptional durability and penetration rates.
Key Advantages:
✔ Optimized Button Layout – Strategically placed carbide inserts ensure even wear and superior crushing efficiency.
✔ High-Strength Steel Shank – Heat-treated for impact resistance, reducing breakage risk in demanding conditions.
✔ Multiple Bit Profiles – Flat, convex, and ballistic shapes available for varied rock hardness and drilling speeds.
✔ Compatibility – Fits leading DTH hammer models (e.g., COP, Mincon, Sand vik) for seamless integration.
Ideal for mining, quarrying, and construction, our DTH bits offer extended lifespan and reduced downtime. R
Product Parameters
|
Type
|
Number of
Air hole |
DIa.(mm)
|
Weight(kg)
|
Gauge Button
|
Front Button
|
|
GL4.5-115
|
2
|
115-118
|
6.4
|
7×ф14
|
6×ф12
|
|
GL4.5-120
|
2
|
120-123
|
7
|
7×ф14
|
6×ф12
|
|
GL4.5-130
|
2
|
130-133
|
8
|
7×ф14
|
6×ф12
|
|
GL4.5-140
|
2
|
140-143
|
8.2
|
7×ф14
|
6×ф12
|
|
GL4.5-150
|
2
|
150-153
|
9
|
7×ф14
|
6×ф12
|
|
GL330-85
|
2
|
82-85
|
3.4
|
6×ф14
|
3×ф12
|
|
GL335-90
|
2
|
90-93
|
4.6
|
6×ф14
|
7×ф12
|
|
GL340-105
|
2
|
105-108
|
7.7
|
8×ф14
|
7×ф13
|
|
GL340-115
|
2
|
115-118
|
8
|
8×ф14
|
7×ф13
|
|
GL340-130
|
2
|
130-133
|
10.5
|
8×ф14
|
8×ф13
|
|
GL350-130
|
2
|
130-133
|
17
|
7×ф16
|
7×ф14
|
|
GL350-140
|
2
|
140-143
|
18
|
7×ф16
|
7×ф14
|
|
GL350-152
|
2
|
152-155
|
19
|
6×ф16
|
6×ф14
|
|
GL360-152
|
2
|
152-155
|
25
|
8×ф16
|
11×ф14
|
|
GL360-165
|
2
|
165-170
|
26.5
|
8×ф16
|
11×ф16
|
|
GL360-178
|
2
|
178-183
|
28.6
|
8×ф16
|
11×ф16
|
|
GL360-194
|
3
|
194-197
|
30
|
9×ф16
|
12×ф16
|
|
GL360-203
|
3
|
203-206
|
32
|
9×ф16
|
13×ф16
|
|
GL360-216
|
3
|
216-219
|
35
|
9×ф16
|
13×ф16
|
|
GL360-230
|
3
|
230-233
|
37
|
12×ф16
|
16×ф16
|
|
GL360-254
|
3
|
254-257
|
43
|
12×ф16
|
16×ф16
|
|
GL360-305
|
3
|
305-308
|
57
|
14×ф18
|
26×ф16
|
|
GL380-203
|
2
|
203-206
|
48
|
8×ф18
|
10×ф16
|
|
GL380-216
|
3
|
216-219
|
50
|
9×ф18
|
13×ф16
|
|
GL380-230
|
3
|
230-233
|
53
|
9×ф18
|
17×ф16
|
|
GL380-254
|
3
|
254-257
|
58
|
9×ф18
|
16×ф16
|
|
GL380-310
|
3
|
310-313
|
71
|
12×ф18
|
15×ф16
|
|
GL380-350
|
4
|
350-353
|
80
|
16×ф18
|
36×ф16
|
|
GL3120-302
|
3
|
302-305
|
176
|
12×ф18
|
×ф18
|
|
GL3120-311
|
3
|
311-314
|
177
|
12×ф18
|
×ф18
|
|
GL3120-330
|
3
|
330-333
|
186
|
12×ф18
|
×ф18
|
|
GL3120-357
|
3
|
357-360
|
196
|
18×ф18
|
×ф18
|
|
GL3120-381
|
3
|
381-384
|
205
|
18×ф18
|
×ф18
|
|
GL3120-444
|
3
|
444-447
|
230
|
18×ф18
|
×ф18
|
|
GL3120-483
|
3
|
483-486
|
285
|
18×ф18
|
×ф18
|
|
GL3120-508
|
3
|
508-511
|
311
|
18×ф18
|
×ф18
|

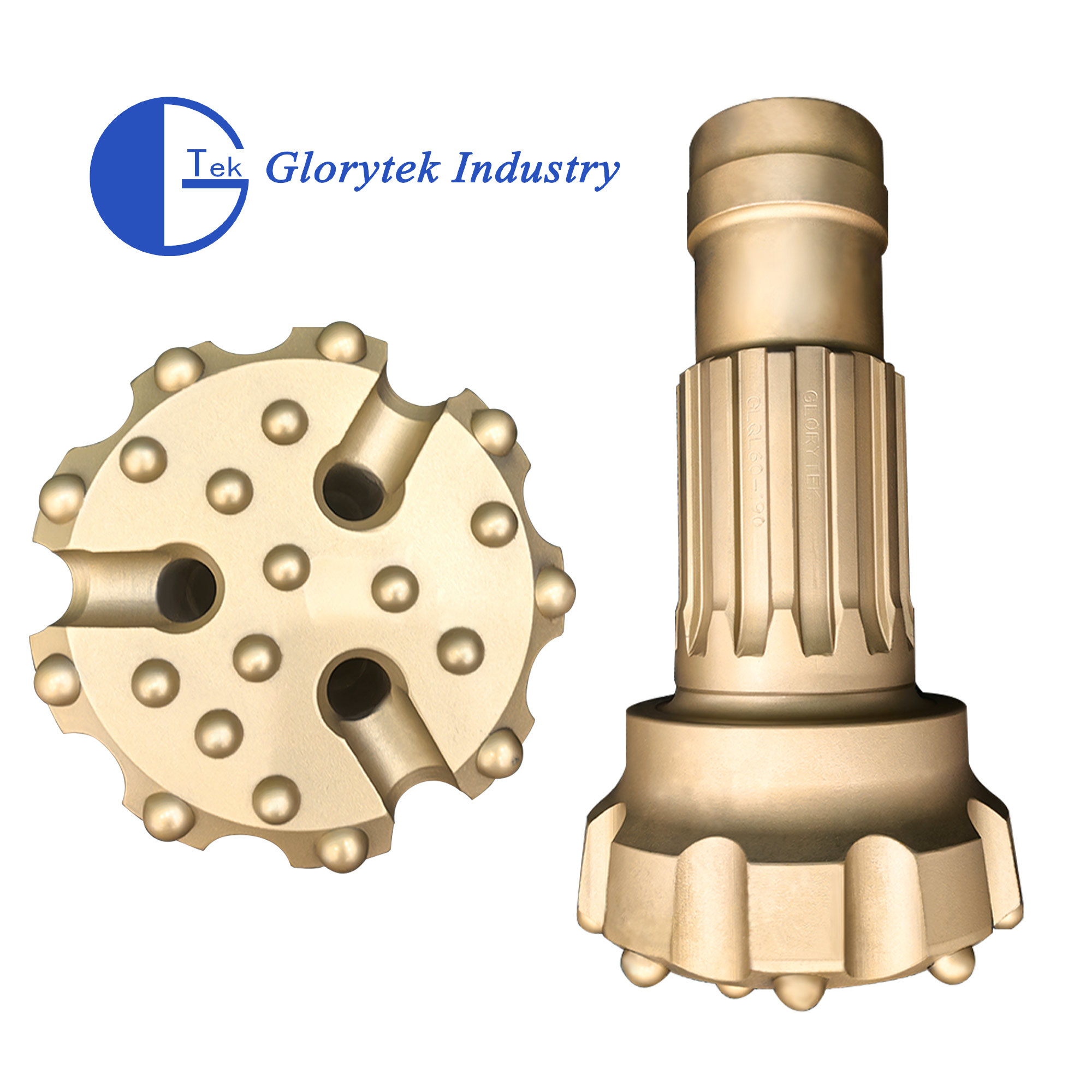

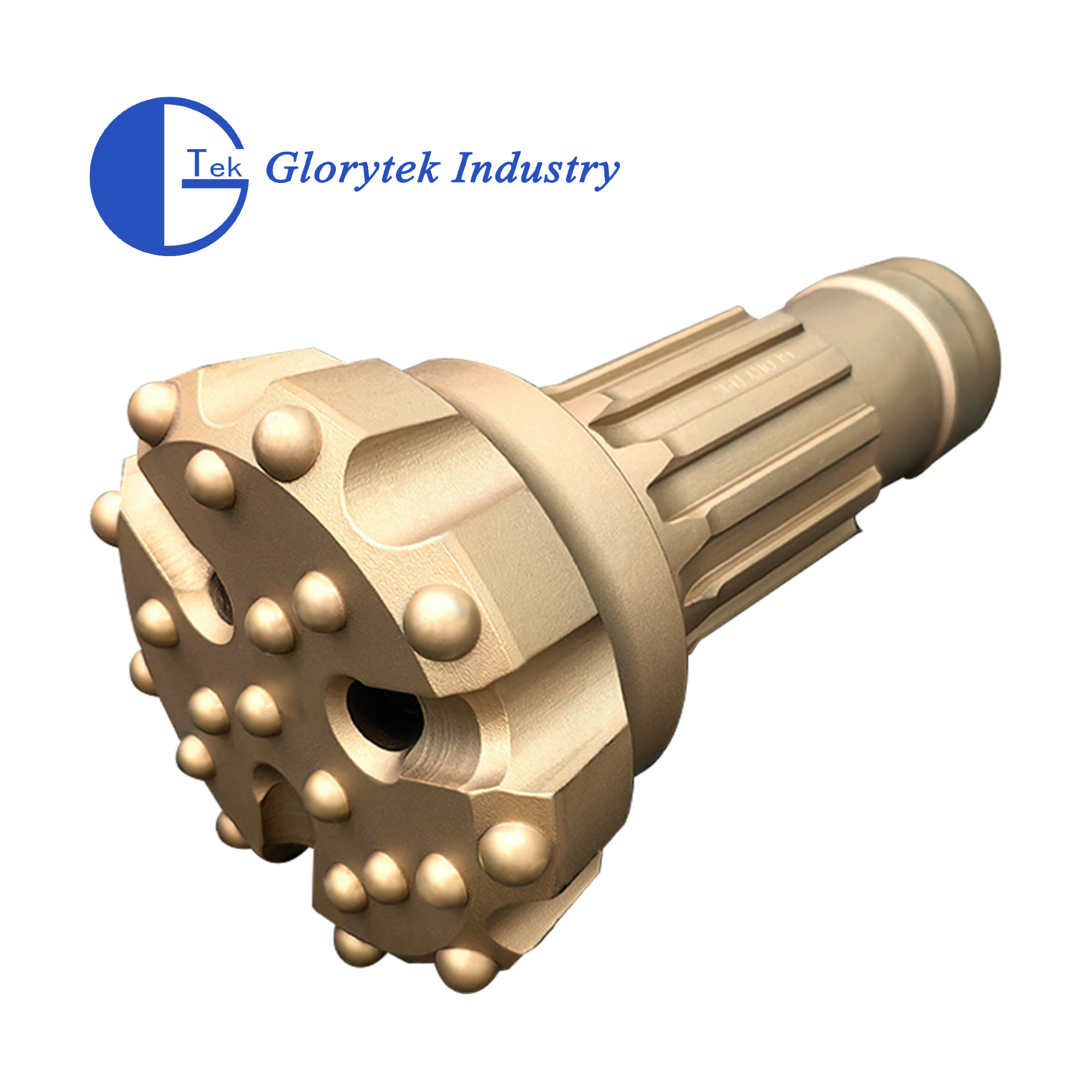

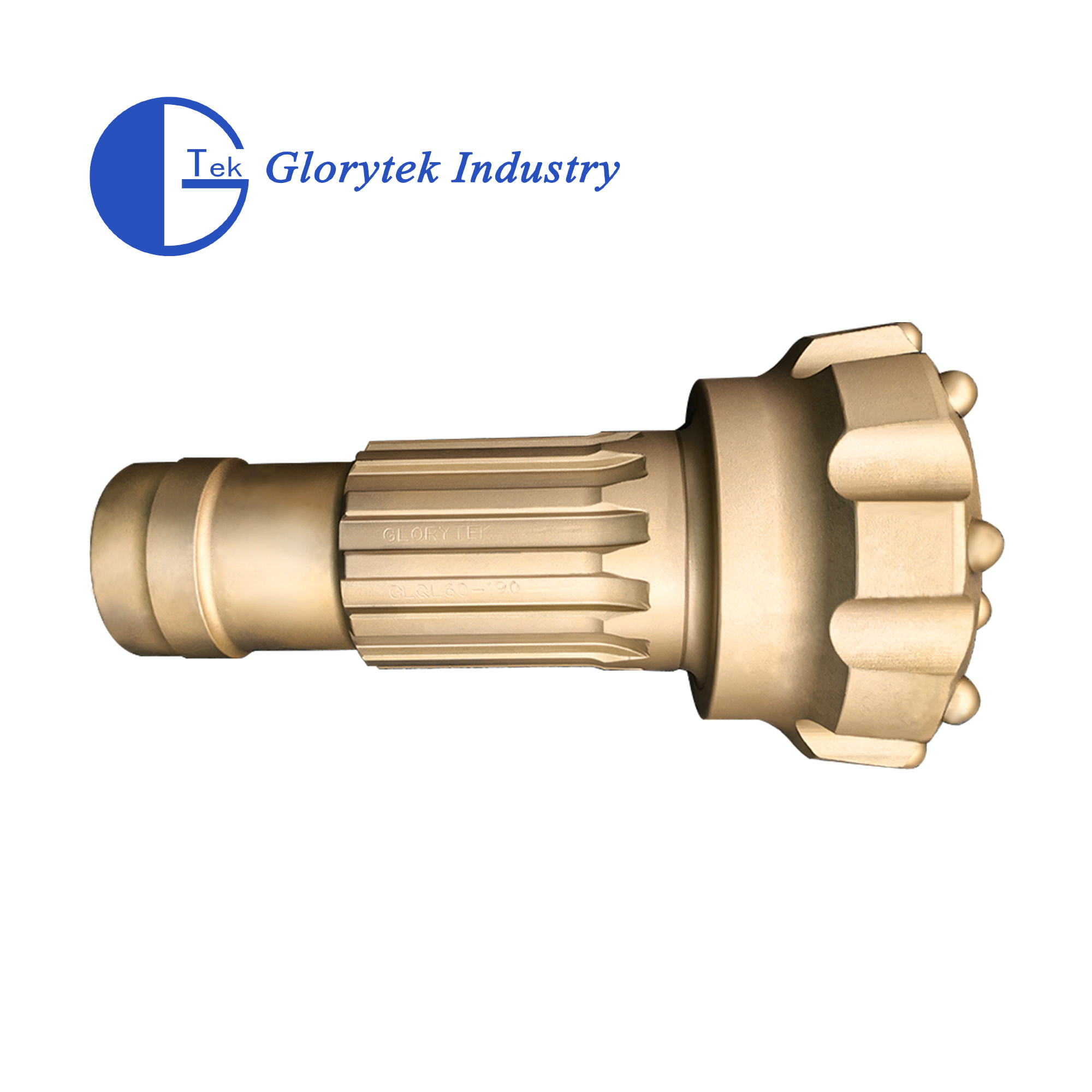

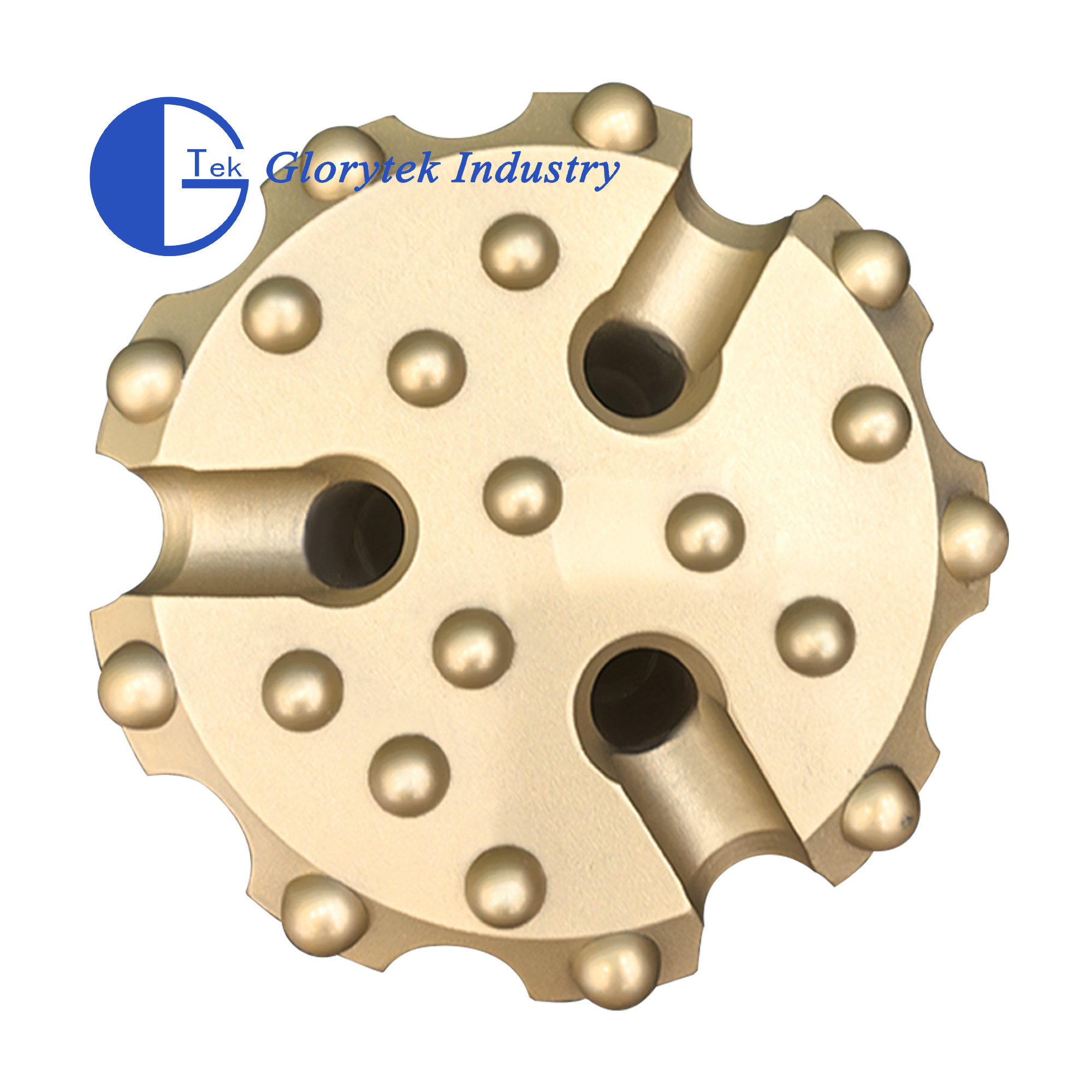

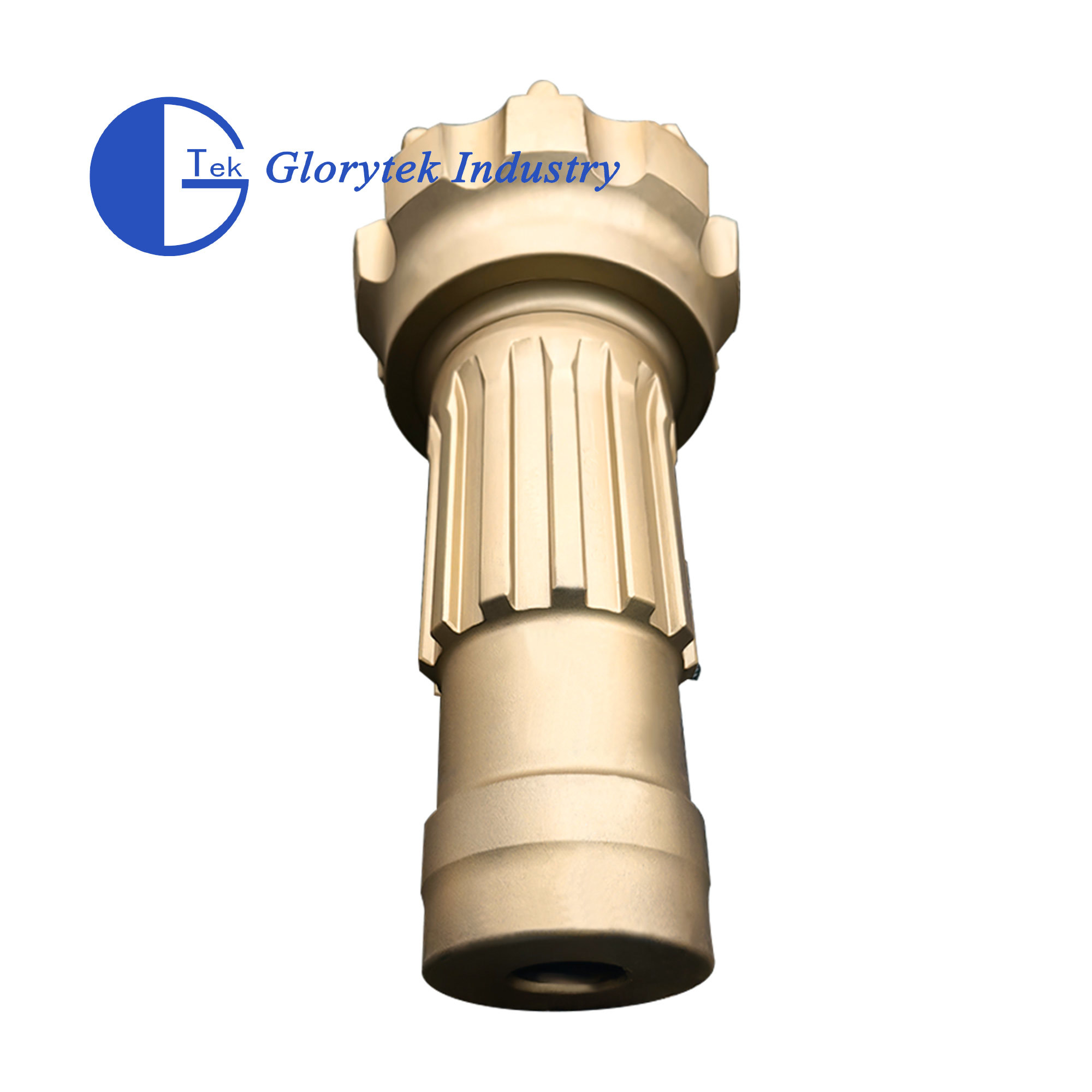

Detailed Photos
Company Profile
Glorytek Industry (Beijing) Co., Ltd, based in Beijing, China, specializes in manufacturing and exporting premium drilling equipment and parts. With a skilled team of designers and engineers, we excel in fulfilling client projects accurately. Our products find extensive application in mining, water well drilling, anchor projects, oil and gas, hydropower, defense, and more, ensuring top-notch performance and reliability across diverse industries.
